SSSF125800
ALPS ALPINE

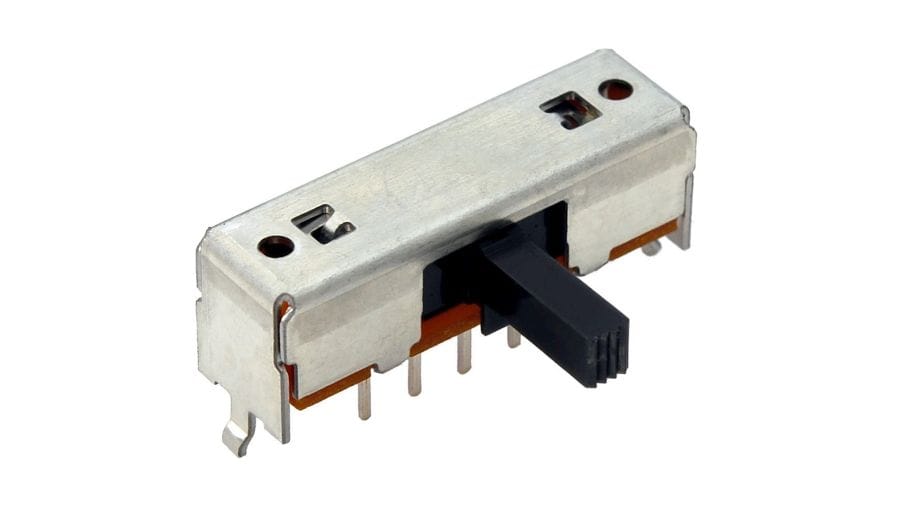

Images are for reference only.
Please see Product Specifications
for details.
Product Specifications
| Category | Switches/Controllers Slide switches |
| Manufacturer | ALPS ALPINE |
| Series | SSSF |
| Maximum rating/minimum rating (resistance load) | 0.1A 30V DC/50μA 3V DC |
| Contact resistance (initial/after life) | 25mOhms max./65mOhms max. |
| Insulation resistance | 100MOhms min. 500V DC |
| Voltage resistance | 500V AC for 1 minute |
| Displacement | 2 mm |
| Operating Force | See outline drawing |
| Operation unit direction | Horizontal |
| Terminal strength | 5N for 1 minute |
| Operation unit strength_operation direction | 30N |
| Operation unit strength_pulling direction | 30N |
| No-load life | 10/000 cycles 45mOhms max. |
| Load life (at maximum rated load) | 10/000 cycles 65mOhms max. |
| Cold resistance | -40℃ 500h |
| Heat resistance | 85℃ 500h |
| Moisture resistance | 60℃/ 90 ~ 95%RH 500h |
| Operating Temperature Range | -40°C ~ +＋85°C |
| Operation unit length | 9 mm |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 1,088
MOQ:1
SPQ:1
Scheduled Incoming Stock (back-order): 0
| Quantity | Unit Price | |
|---|---|---|
| 1 - 9 | $2.002 | |
| 10 - 49 | $1.332 | |
| 50 - 99 | $0.859 | |
| 100 - 299 | $0.80 | |
| 300 - 499 | $0.76 | |
| 500 - 999 | $0.752 | |
| 1,000 - 1,999 | $0.746 | |
| 2,000 - | $0.744 | |
