S2B-PH-K-S
JST

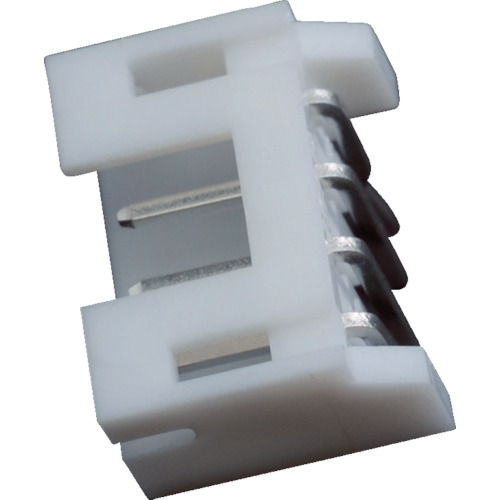

Images are for reference only.
Please see Product Specifications
for details.
Documents
Product Specifications
| Category | Connectors/Interfaces Header -male pins |
| Manufacturer | JST |
| Series | PH |
| Connector Type | Header |
| Contact Type | Male Pin |
| Voltage Rating | 100 V |
| Current Rating (Amps) | 2.0 A |
| Contact Shape | Square |
| Shrouding | Shrouded - 4 Wall |
| Style | Board To Cable/Wire |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Termination | Press Fit/Solder |
| Number of Positions Loaded | Full |
| Operating Temperature Range | -25°C ~ +85°C |
| Mounting Type | Through Hole/Right Angle |
| Fastening Type | Detent Lock |
| Contact Length - Post | 0.134" (3.40mm) |
| Contact Length - Mating | 0.130" (3.30mm) |
| Insulation Height | 0.189" (4.80mm) |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
| Insulation Color | Natural |
| Contact Material | Brass |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 4
MOQ:1
SPQ:1
| Quantity | Unit Price | |
|---|---|---|
| 1 - 1 | $14.354 | |
| 2 - 2 | $10.861 | |
| 3 - 4 | $9.696 | |
| 5 - 9 | $8.765 | |
| 10 - 29 | $8.066 | |
| 30 - 49 | $7.60 | |
| 50 - 199 | $7.507 | |
| 200 - | $7.403 | |
