S10B-EH
JST

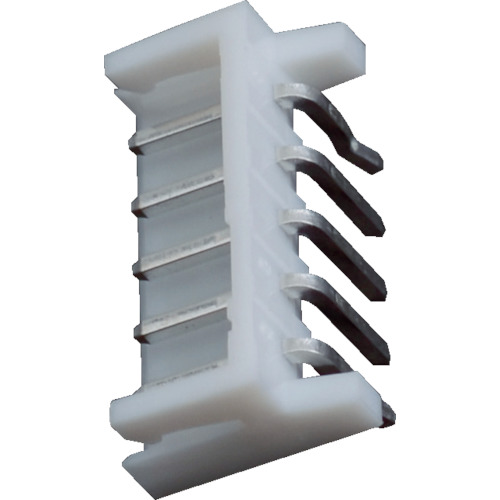

Images are for reference only.
Please see Product Specifications
for details.
Product Specifications
| Category | Connectors/Interfaces Header -male pins |
| Manufacturer | JST |
| Series | EH |
| Connector Type | Header |
| Contact Type | Male Pin |
| Voltage Rating | 250 V |
| Current Rating (Amps) | 3.0 A |
| Contact Shape | Square |
| Shrouding | Shrouded - 3 Wall |
| Style | Board To Cable/Wire |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Termination | Press Fit/Solder |
| Number of Positions Loaded | Full |
| Operating Temperature Range | -25°C ~ +85°C |
| Features | ●High Contact Reliability Achieved With A Slim Design. ●Has A Mechanism To Prevent Incorrect Insertion. |
| Applications | ●For Wiring Inside Equipment. ●2.0Mm Pitch For Wire-To-Board Connections. |
| Mounting Type | Through Hole/Right Angle |
| Fastening Type | Latch Lock |
| Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | 0.157" (4.00mm) |
| Insulation Height | 0.165" (4.20mm) |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
| Insulation Color | Natural |
| Contact Material | Brass |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 8
MOQ:1
SPQ:1
| Quantity | Unit Price | |
|---|---|---|
| 1 - 1 | $26.744 | |
| 2 - 2 | $23.251 | |
| 3 - 4 | $22.087 | |
| 5 - 9 | $21.155 | |
| 10 - 29 | $20.457 | |
| 30 - | $19.991 | |
| - | - | |
| - | - | |
