RA1C030LDT5CL
ROHM

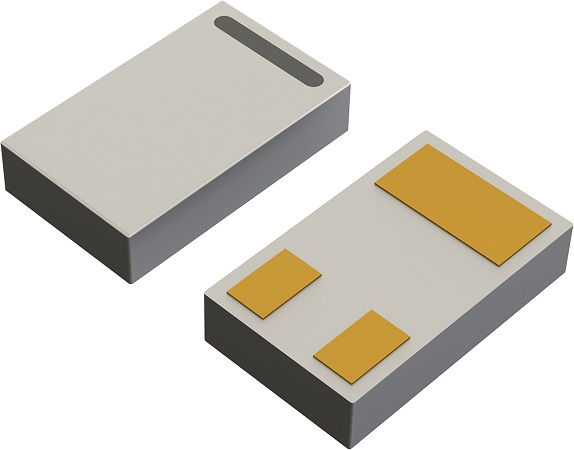

Images are for reference only.
Please see Product Specifications
for details.
Documents
Product Specifications
| Category | Discrete semiconductors Discrete single |
| Manufacturer | ROHM |
| FET Type | N-Channel |
| Drain to Source Voltage (Vdss) | 20V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Current - Continuous Drain (Id) @ 25°C | 3A(TA) |
| Input Capacitance (Ciss) (Max) @ Vds | 150pF @ 10 V |
| Power Dissipation (Max) | 1W(Ta) |
| Rds On (Max) @ Id, Vgs | 140mOhms @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA |
| Vgs (Max) | +7V, -0.2V |
| Technology | Mosfet (Metal Oxide) |
| Operating Temperature Range | 150°C(TJ) |
| Mounting Type | Surface Mount |
| Device Package | DSN1006-3 |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 15,000
MOQ:1
SPQ:1
Scheduled Incoming Stock (back-order): 0
| Quantity | Unit Price | |
|---|---|---|
| 1 - 49 | $0.241 | |
| 50 - 99 | $0.207 | |
| 100 - 299 | $0.148 | |
| 300 - 499 | $0.109 | |
| 500 - 999 | $0.101 | |
| 1,000 - 3,999 | $0.095 | |
| 4,000 - 4,999 | $0.091 | |
| 5,000 - | $0.09 | |
