IRF1405STRLPBF
INFINEON
RoHS Status:RoHS
CoreStaff Part Number:st71337398
Date Code:2513

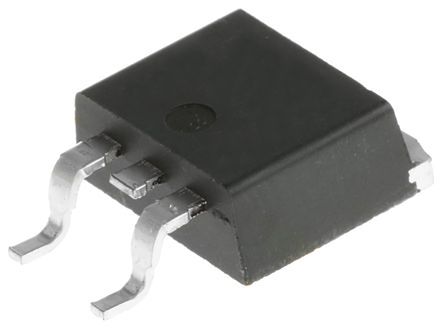

Images are for reference only.
Please see Product Specifications
for details.
Documents
Product Specifications
| Category | Discrete semiconductors Discrete single |
| Manufacturer | INFINEON |
| Series | HEXFETR |
| FET Type | N-Channel |
| Drain to Source Voltage (Vdss) | 55V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 131A(Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 5480pF @ 25 V |
| Power Dissipation (Max) | 200W(Tc) |
| Rds On (Max) @ Id, Vgs | 5.3mOhms @ 101A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | Mosfet (Metal Oxide) |
| Operating Temperature Range | -55°C ~ 175°C(TJ) |
| Mounting Type | Surface Mount |
| Device Package | D2PAK |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 800
MOQ:800
SPQ:800
| Quantity | Unit Price | |
|---|---|---|
| 800 - 7,999 | $1.239 | |
| 8,000 - 39,999 | $1.235 | |
| 40,000 - | $1.232 | |
| - | - | |
| - | - | |
| - | - | |
| - | - | |
| - | - | |
