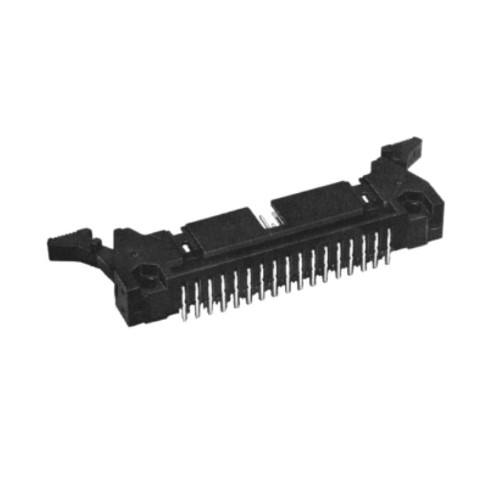

HIF3BA-30PA-2.54DS(71)
HIROSE
RoHS Status:RoHS
Packing Type:bulk
CoreStaff Part Number:st49982742
Images are for reference only.
Please see Product Specifications
for details.
Documents
Product Specifications
| Category | Connectors/Interfaces Header -male pins |
| Manufacturer | HIROSE |
| Series | HIF3B |
| Connector Type | Header |
| Contact Type | Male Pin |
| Voltage Rating | 200 V |
| Current Rating (Amps) | 1.0 A |
| Contact Shape | Square |
| Shrouding | Shrouded - 4 Wall |
| Style | Board To Cable/Wire |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 30 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Termination | Solder |
| Number of Positions Loaded | Full |
| Operating Temperature Range | -55°C ~ +85°C |
| Features | Keying Slot/Mounting Flange |
| Mounting Type | Through Hole/Right Angle |
| Fastening Type | Latch Lock/Ejector Hook |
| Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.236" (6.00mm) |
| Insulation Height | 0.335" (8.51mm) |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin(0.203µm) |
| Insulation Color | Black |
| Contact Material | Brass |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 6
MOQ:13
SPQ:1
