EPY.00.250.NTN
LEMO

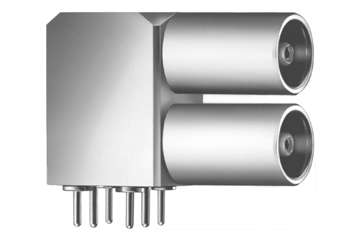

Images are for reference only.
Please see Product Specifications
for details.
Documents
Product Specifications
| Body Material | Brass |
| Body Plating | Nickel |
| Connector Type | Receptacle, Socket |
| Contact Gender | Female |
| Contact Material | Gold, Nickel |
| Contact Plating | Gold |
| Current Rating | 4 A |
| Dielectric Material | PTFE |
| Fastening Type | Pull, Push |
| Height | 14.8 mm |
| Housing Color | Silver |
| Impedance | 50 Ω |
| Max Operating Temperature | 260 °C |
| Manufacturer Package Identifier | EPY.00.250.NTN |
| Min Operating Temperature | -55 °C |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Orientation | Right Angle |
| Plating | Nickel |
| Ratings | IP50 |
| REACH SVHC | No |
| Shell Material | Brass |
| Termination | Solder |
| Voltage Rating | 700 V |
| Voltage Rating (AC) | 2.1 kV |
| Voltage Rating (DC) | 3 kV |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
