DF1BZ-24DP-2.5DSA
HIROSE
RoHS Status:N/A
Packing Type:bulk
CoreStaff Part Number:st62908416

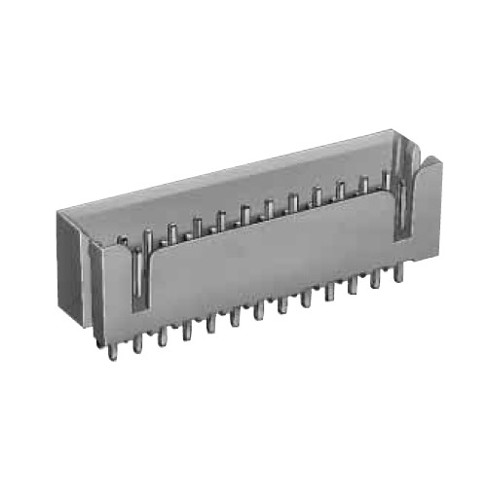

Images are for reference only.
Please see Product Specifications
for details.
Documents
Product Specifications
| Category | Connectors/Interfaces Header -male pins |
| Manufacturer | HIROSE |
| Series | DF1B |
| Connector Type | Header |
| Contact Type | Male Pin |
| Voltage Rating | 250 V |
| Current Rating (Amps) | 3.0 A |
| Contact Shape | Square |
| Shrouding | Shrouded - 4 Wall |
| Style | Board To Cable/Wire |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 24 |
| Row Spacing - Mating | 0.098" (2.50mm) |
| Number of Rows | 2 |
| Termination | Solder |
| Number of Positions Loaded | Full |
| Operating Temperature Range | -35°C ~ +85°C |
| Features | Keying Slot |
| Mounting Type | Through Hole |
| Fastening Type | Push-Pull |
| Overall Contact Length | 0.417" (10.60mm) |
| Contact Length - Post | 0.142" (3.60mm) |
| Contact Length - Mating | 0.177" (4.50mm) |
| Insulation Height | 0.374" (9.50mm) |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
| Insulation Color | White |
| Contact Material | Brass |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 89
MOQ:1
SPQ:1
| Quantity | Unit Price | |
|---|---|---|
| 1 - 4 | $4.40 | |
| 5 - 9 | $1.724 | |
| 10 - 49 | $1.027 | |
| 50 - 99 | $0.469 | |
| 100 - 499 | $0.399 | |
| 500 - 999 | $0.344 | |
| 1,000 - 4,999 | $0.337 | |
| 5,000 - | $0.331 | |
