DF13-7P-1.25DSA
HIROSE
RoHS Status:RoHS
Packing Type:bulk
CoreStaff Part Number:st49978348

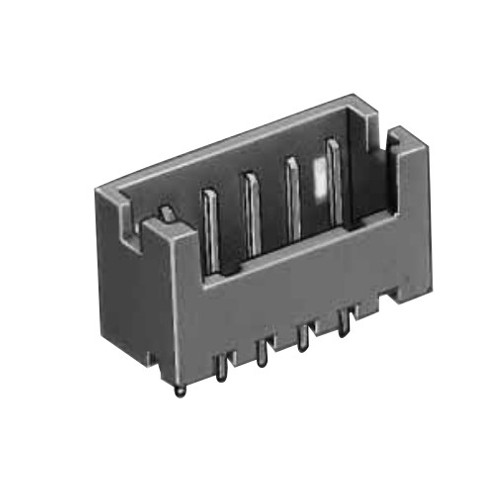

Images are for reference only.
Please see Product Specifications
for details.
Product Specifications
| Category | Connectors/Interfaces Header -male pins |
| Manufacturer | HIROSE |
| Series | DF13 |
| Connector Type | Header |
| Contact Type | Male Pin |
| Voltage Rating | 150 V |
| Current Rating (Amps) | 1.0 A |
| Contact Shape | Square |
| Shrouding | Shrouded - 4 Wall |
| Style | Board To Cable/Wire |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Termination | Solder |
| Number of Positions Loaded | Full |
| Operating Temperature Range | -35°C ~ +85°C |
| Mounting Type | Through Hole |
| Fastening Type | Detent Lock |
| Contact Length - Post | 0.091" (2.30mm) |
| Insulation Height | 0.169" (4.30mm) |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin(1.00µm) |
| Insulation Color | Beige |
| Contact Material | Brass |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 4
MOQ:3
SPQ:1
| Quantity | Unit Price | |
|---|---|---|
| 3 - 29 | $27.44 | |
| 30 - 149 | $26.641 | |
| 150 - 299 | $26.042 | |
| 300 - 1,499 | $25.643 | |
| 1,500 - 2,999 | $25.563 | |
| 3,000 - 5,999 | $25.503 | |
| 6,000 - 11,999 | $25.473 | |
| 12,000 - | $25.447 | |
