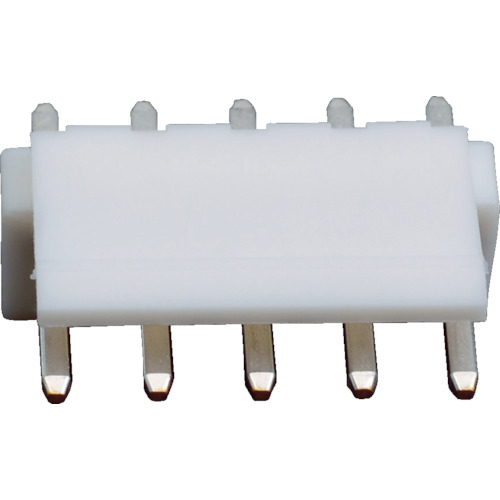

B8P-VH
JST
Stock Type:Quality-guaranteed
CoreStaff Part Number:st42385438
Date Code:Unchecked
Images are for reference only.
Please see Product Specifications
for details.
Documents
Product Specifications
| Category | Connectors/Interfaces Header -male pins |
| Manufacturer | JST |
| Series | VH |
| Connector Type | Header |
| Contact Type | Male Pin |
| Voltage Rating | 250 V |
| Current Rating (Amps) | 10.0 A |
| Contact Shape | Square |
| Shrouding | Shrouded - 1 Wall |
| Style | Board To Cable/Wire |
| Pitch - Mating | 0.156" (3.96mm) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Termination | Solder |
| Number of Positions Loaded | Full |
| Operating Temperature Range | -25°C ~ +85°C |
| Features | Enables A Wide Range Of Connections From Signal Circuits In Electronic Devices To Power Supply Circuits And Output Circuits. |
| Mounting Type | Through Hole |
| Fastening Type | Fixed Ramp |
| Overall Contact Length | 0.575" (14.60mm) |
| Contact Length - Post | 0.146" (3.70mm) |
| Contact Length - Mating | 0.303" (7.70mm) |
| Insulation Height | 0.370" (9.40mm) |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
| Insulation Color | Natural |
| Contact Material | Brass |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
