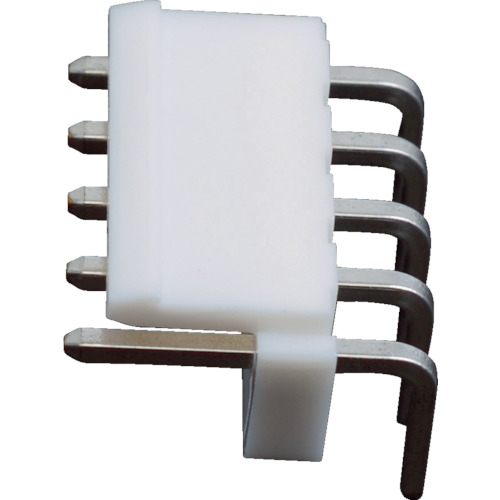

B5PS-VH
JST
Images are for reference only.
Please see Product Specifications
for details.
Documents
Product Specifications
| Category | Connectors/Interfaces Header -male pins |
| Manufacturer | JST |
| Series | VH |
| Connector Type | Header |
| Contact Type | Male Pin |
| Voltage Rating | 250 V |
| Current Rating (Amps) | 10.0 A |
| Contact Shape | Square |
| Shrouding | Shrouded - 1 Wall |
| Style | Board To Cable/Wire |
| Pitch - Mating | 0.156" (3.96mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Termination | Solder |
| Number of Positions Loaded | Full |
| Operating Temperature Range | -25°C ~ +85°C |
| Features | Enables A Wide Range Of Connections From Signal Circuits In Electronic Devices To Power Supply Circuits And Output Circuits. |
| Mounting Type | Through Hole/Right Angle |
| Fastening Type | Fixed Ramp |
| Contact Length - Post | 0.142" (3.60mm) |
| Contact Length - Mating | 0.303" (7.70mm) |
| Insulation Height | 0.335" (8.51mm) |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
| Insulation Color | Natural |
| Contact Material | Brass |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 7
MOQ:1
SPQ:1
| Quantity | Unit Price | |
|---|---|---|
| 1 - 9 | $13.632 | |
| 10 - 49 | $8.777 | |
| 50 - 99 | $8.17 | |
| 100 - 499 | $7.766 | |
| 500 - 999 | $7.685 | |
| 1,000 - 1,999 | $7.624 | |
| 2,000 - 3,999 | $7.594 | |
| 4,000 - | $7.584 | |
