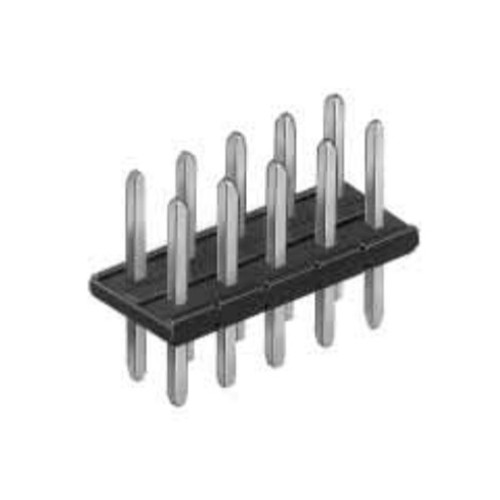

A3C-8P-2DSA
HIROSE
Images are for reference only.
Please see Product Specifications
for details.
Documents
Product Specifications
| Category | Connectors/Interfaces Header -male pins |
| Manufacturer | HIROSE |
| Series | A3 |
| Connector Type | Header |
| Contact Type | Male Pin |
| Voltage Rating | 200 V |
| Current Rating (Amps) | 1.0 A |
| Contact Shape | Square |
| Shrouding | Unshrouded |
| Style | Board To Board Or Cable |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Termination | Solder |
| Number of Positions Loaded | Full |
| Operating Temperature Range | -55°C ~ +85°C |
| Mounting Type | Through Hole |
| Fastening Type | Push-Pull |
| Overall Contact Length | 0.276" (7.00mm) |
| Contact Length - Post | 0.102" (2.60mm) |
| Contact Length - Mating | 0.138" (3.50mm) |
| Insulation Height | 0.035" (0.90mm) |
| Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin(0.203µm) |
| Insulation Color | Black |
| Contact Material | Brass |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 20
MOQ:1
SPQ:1
| Quantity | Unit Price | |
|---|---|---|
| 1 - 9 | $13.957 | |
| 10 - 49 | $9.103 | |
| 50 - 99 | $8.496 | |
| 100 - 499 | $8.091 | |
| 500 - 999 | $8.01 | |
| 1,000 - 1,999 | $7.95 | |
| 2,000 - 3,999 | $7.919 | |
| 4,000 - | $7.909 | |
