DF11-16DP-2DSA(01)
HIROSE
RoHS Status:RoHS2
COO:JP
Lifecycle Status:Production (Last Updated: 4 years ago)

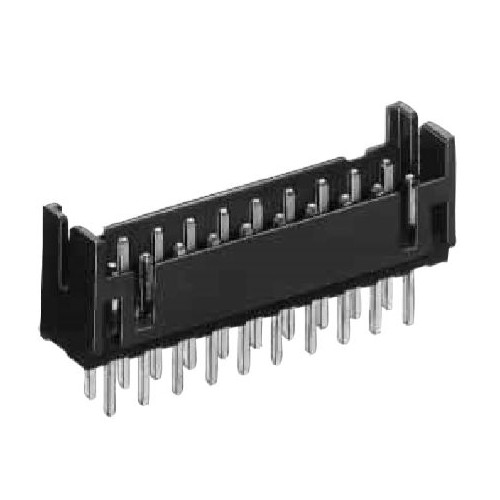

Images are for reference only.
Please see Product Specifications
for details.
Documents
Product Specifications
| Category | Connectors/Interfaces Header -male pins |
| Manufacturer | HIROSE |
| Series | DF11 |
| Connector Type | Header |
| Contact Type | Male Pin |
| Voltage Rating | 250 V |
| Current Rating (Amps) | 2.0 A |
| Contact Shape | Square |
| Shrouding | Shrouded - 4 Wall |
| Style | Board To Board Or Cable |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Termination | Solder |
| Number of Positions Loaded | Full |
| Operating Temperature Range | -30°C ~ +85°C |
| Mounting Type | Through Hole |
| Fastening Type | Detent Lock |
| Overall Contact Length | 0.299" (7.60mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.118" (3.00mm) |
| Insulation Height | 0.260" (6.60mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin(0.203µm) |
| Insulation Color | Black |
| Contact Material | Brass |
・This information is intended to provide a brief overview of the item.
・For a more comprehensive explanation of this product, please refer to the manufacturer's
official data sheet.
In Stock: 157
MOQ:1
SPQ:1
Scheduled Incoming Stock (back-order): 0
| Quantity | Unit Price | |
|---|---|---|
| 1 - 19 | $1.23 | |
| 20 - 49 | $0.751 | |
| 50 - 99 | $0.573 | |
| 100 - 299 | $0.514 | |
| 300 - 499 | $0.475 | |
| 500 - 999 | $0.467 | |
| 1,000 - 3,999 | $0.461 | |
| 4,000 - | $0.456 | |
