Current - Trip (It) Current - Hold (Ih) (Max) Resistance - Post Trip (R1) (Max) Resistance - Initial (Ri) (Min) Time to Trip Lead Spacing Size / Dimension Height - Seated (Max)

Series

点击数：28～  /   型号：  /   库存类别：全部  /   数量：0PCS~

Page　1 of 1

搜索结果（Excel）

  • 1

库存类别
供应商排名		 供应商 库存所在位置 照片 型号 / 制造商 / 其他 库存量 生产批次 单价 最低订货数量 /
后续订购数量		 预定出货日 ECAD模型 资讯
核友型号		 Manufacturer Series Type Voltage - Max Current - Trip (It) Current - Hold (Ih) (Max) Current - Max Resistance - Post Trip (R1) (Max) Resistance - Initial (Ri) (Min) Time to Trip Lead Spacing Ratings Operating Temperature Range Applications Automotive Mounting Type Device Package Size / Dimension Height - Seated (Max) Thickness (Max) Product Overview
Partner Stock

0ZRB0090FF1C

0ZRB0090FF1C
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 900 mA Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0090FF1C-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 1.8 A 900 mA 40 A 220 mOhms 70 mOhms 5.9 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.291" L x 0.118" W (7.40mm x 3.00mm) 0.480" (12.20mm) -
Partner Stock

0ZRB0090FF2E

0ZRB0090FF2E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 900 mA Ih Through Hole Radial, Disc
核友型号：zp2216-0ZRB0090FF2E-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 1.8 A 900 mA 40 A 220 mOhms 70 mOhms 5.9 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.291" L x 0.118" W (7.40mm x 3.00mm) 0.480" (12.20mm) -
Partner Stock

0ZRB0110FF1C

0ZRB0110FF1C
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 1.1 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0110FF1C-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 2.2 A 1.1 A 40 A 170 mOhms 50 mOhms 6.6 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.291" L x 0.118" W (7.40mm x 3.00mm) 0.559" (14.20mm) -
Partner Stock

0ZRB0110FF2E

0ZRB0110FF2E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 1.1 A Ih Through Hole Radial, Disc
核友型号：zp2216-0ZRB0110FF2E-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 2.2 A 1.1 A 40 A 170 mOhms 50 mOhms 6.6 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.291" L x 0.118" W (7.40mm x 3.00mm) 0.559" (14.20mm) -
Partner Stock

0ZRB0135FF1E

0ZRB0135FF1E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 1.35 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0135FF1E-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 2.7 A 1.35 A 40 A 130 mOhms 40 mOhms 7.3 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.350" L x 0.118" W (8.90mm x 3.00mm) 0.532" (13.50mm) -
Partner Stock

0ZRB0135FF2E

0ZRB0135FF2E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 1.35 A Ih Through Hole Radial, Disc
核友型号：zp2216-0ZRB0135FF2E-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 2.7 A 1.35 A 40 A 130 mOhms 40 mOhms 7.3 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.350" L x 0.118" W (8.90mm x 3.00mm) 0.532" (13.50mm) -
Partner Stock

0ZRB0160FF1E

0ZRB0160FF1E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 1.6 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0160FF1E-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 3.2 A 1.6 A 40 A 110 mOhms 30 mOhms 8 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.350" L x 0.118" W (8.90mm x 3.00mm) 0.598" (15.20mm) -
Partner Stock

0ZRB0160FF2E

0ZRB0160FF2E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 1.6 A Ih Through Hole Radial, Disc
核友型号：zp2216-0ZRB0160FF2E-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 3.2 A 1.6 A 40 A 110 mOhms 30 mOhms 8 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.350" L x 0.118" W (8.90mm x 3.00mm) 0.598" (15.20mm) -
Partner Stock

0ZRB0185FF1E

0ZRB0185FF1E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 1.85 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0185FF1E-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 3.7 A 1.85 A 40 A 90 mOhms 30 mOhms 8.7 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.402" L x 0.118" W (10.20mm x 3.00mm) 0.618" (15.70mm) -
Partner Stock

0ZRB0185FF2E

0ZRB0185FF2E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 1.85 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0185FF2ETR-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 3.7 A 1.85 A 40 A 90 mOhms 30 mOhms 8.7 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.402" L x 0.118" W (10.20mm x 3.00mm) 0.618" (15.70mm) -
Partner Stock

0ZRB0185FF2E

0ZRB0185FF2E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 1.85 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0185FF2ECT-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 3.7 A 1.85 A 40 A 90 mOhms 30 mOhms 8.7 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.402" L x 0.118" W (10.20mm x 3.00mm) 0.618" (15.70mm) -
Partner Stock

0ZRB0250FF1E

0ZRB0250FF1E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 2.5 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0250FF1E-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 5 A 2.5 A 40 A 70 mOhms 20 mOhms 10.3 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.449" L x 0.118" W (11.40mm x 3.00mm) 0.720" (18.30mm) -
Partner Stock

0ZRB0250FF2E

0ZRB0250FF2E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 2.5 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0250FF2ECT-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 5 A 2.5 A 40 A 70 mOhms 20 mOhms 10.3 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.449" L x 0.118" W (11.40mm x 3.00mm) 0.720" (18.30mm) -
Partner Stock

0ZRB0250FF2E

0ZRB0250FF2E
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 2.5 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0250FF2ETR-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 5 A 2.5 A 40 A 70 mOhms 20 mOhms 10.3 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.449" L x 0.118" W (11.40mm x 3.00mm) 0.720" (18.30mm) -
Partner Stock

0ZRB0300FF1A

0ZRB0300FF1A
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 3 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0300FF1A-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 6 A 3 A 40 A 80 mOhms 20 mOhms 10.8 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.449" L x 0.118" W (11.40mm x 3.00mm) 0.681" (17.30mm) -
Partner Stock

0ZRB0300FF2B

0ZRB0300FF2B
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 3 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0300FF2BTR-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 6 A 3 A 40 A 80 mOhms 20 mOhms 10.8 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.449" L x 0.118" W (11.40mm x 3.00mm) 0.681" (17.30mm) -
Partner Stock

0ZRB0300FF2B

0ZRB0300FF2B
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 3 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0300FF2BCT-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 6 A 3 A 40 A 80 mOhms 20 mOhms 10.8 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.449" L x 0.118" W (11.40mm x 3.00mm) 0.681" (17.30mm) -
Partner Stock

0ZRB0400FA1A

0ZRB0400FA1A
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 4 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0400FA1A-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 8 A 4 A 40 A 50 mOhms 10 mOhms 12.7 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.551" L x 0.118" W (14.00mm x 3.00mm) 0.791" (20.10mm) -
Partner Stock

0ZRB0400FA2B

0ZRB0400FA2B
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 4 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0400FA2BTR-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 8 A 4 A 40 A 50 mOhms 10 mOhms 12.7 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.551" L x 0.118" W (14.00mm x 3.00mm) 0.791" (20.10mm) -
Partner Stock

0ZRB0400FF1A

0ZRB0400FF1A
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 4 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0400FF1A-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 8 A 4 A 40 A 50 mOhms 10 mOhms 12.7 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.551" L x 0.118" W (14.00mm x 3.00mm) 0.791" (20.10mm) -
Partner Stock

0ZRB0400FF2B

0ZRB0400FF2B
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 4 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0400FF2BTR-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 8 A 4 A 40 A 50 mOhms 10 mOhms 12.7 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.551" L x 0.118" W (14.00mm x 3.00mm) 0.791" (20.10mm) -
Partner Stock

0ZRB0400FF2B

0ZRB0400FF2B
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 4 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0400FF2BCT-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 8 A 4 A 40 A 50 mOhms 10 mOhms 12.7 s 0.201" (5.10mm) - -40°C ~ 85°C Through Hole 0.551" L x 0.118" W (14.00mm x 3.00mm) 0.791" (20.10mm) -
Partner Stock

0ZRB0500FA1A

0ZRB0500FA1A
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 5 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0500FA1A-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 10 A 5 A 40 A 50 mOhms 10 mOhms 14.5 s 0.402" (10.20mm) - -40°C ~ 85°C Through Hole 0.551" L x 0.118" W (14.00mm x 3.00mm) 0.980" (24.90mm) -
Partner Stock

0ZRB0500FF1A

0ZRB0500FF1A
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 5 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0500FF1A-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 10 A 5 A 40 A 50 mOhms 10 mOhms 14.5 s 0.402" (10.20mm) - -40°C ~ 85°C Through Hole 0.551" L x 0.118" W (14.00mm x 3.00mm) 0.980" (24.90mm) -
Partner Stock

0ZRB0600FF1A

0ZRB0600FF1A
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 6 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0600FF1A-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 12 A 6 A 40 A 40 mOhms 5 mOhms 16 s 0.402" (10.20mm) - -40°C ~ 85°C Through Hole 0.650" L x 0.118" W (16.50mm x 3.00mm) 0.980" (24.90mm) -
Partner Stock

0ZRB0700FF1A

0ZRB0700FF1A
BEL FUSE INC.

RoHS


View Details

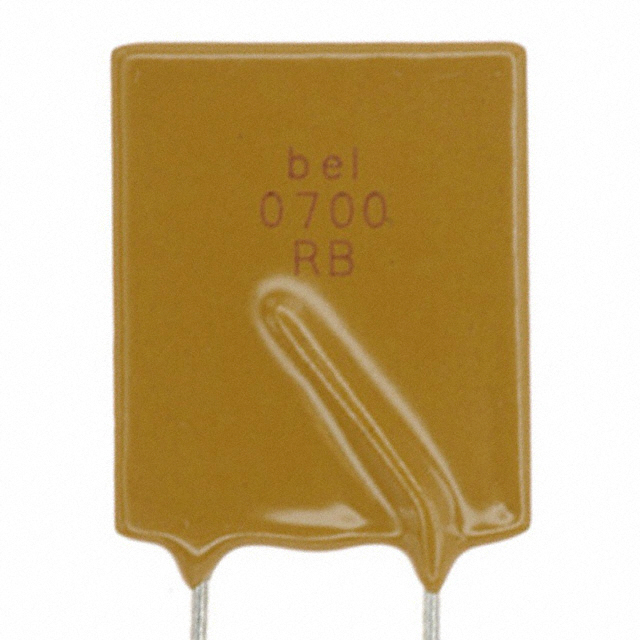

Polymeric PTC Resettable Fuse 30V 7 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0700FF1A-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 14 A 7 A 40 A 30 mOhms 5 mOhms 17.5 s 0.402" (10.20mm) - -40°C ~ 85°C Through Hole 0.752" L x 0.118" W (19.10mm x 3.00mm) 1.051" (26.70mm) -
Partner Stock

0ZRB0800FF1A

0ZRB0800FF1A
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 8 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0800FF1A-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 16 A 8 A 40 A 20 mOhms 5 mOhms 18.8 s 0.402" (10.20mm) - -40°C ~ 85°C Through Hole 0.850" L x 0.118" W (21.60mm x 3.00mm) 1.150" (29.20mm) -
Partner Stock

0ZRB0900FF1A

0ZRB0900FF1A
BEL FUSE INC.

RoHS


View Details

Polymeric PTC Resettable Fuse 30V 9 A Ih Through Hole Radial, Disc
核友型号：zp2216-5923-0ZRB0900FF1A-ND@0

Bel Fuse Inc. 0ZRB Polymeric 30V 18 A 9 A 40 A 20 mOhms 5 mOhms 20 s 0.402" (10.20mm) - -40°C ~ 85°C Through Hole 0.949" L x 0.118" W (24.10mm x 3.00mm) 1.169" (29.70mm) -
