应用筛选：

点击数：24～ / 型号： / 库存类别：全部 / 数量：0PCS~

Page　1 of 1

搜索结果（Excel）

库存所在位置	型号 / 制造商 / 其他	资讯核友型号	Manufacturer	Series	FET Type	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Vgs (Max)	Technology	FET Feature	Operating Temperature Range	Applications	Automotive	Mounting Type	Device Package
Partner Stock	2N7002-CT ANALOG POWER INC.	N-Channel 60 V 600mA (Ta) 1.3W (Ta) Surface Mount SOT-23	Analog Power Inc.	-	N-Channel	60 V	4.5V, 10V	600mA (Ta)	474 pF @ 15 V	1.3W (Ta)	3Ohm @ 600mA, 10V	1V @ 250µA	±20V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	SOT-23
Partner Stock	2N7002DW ANALOG POWER INC.		Analog Power Inc.	*

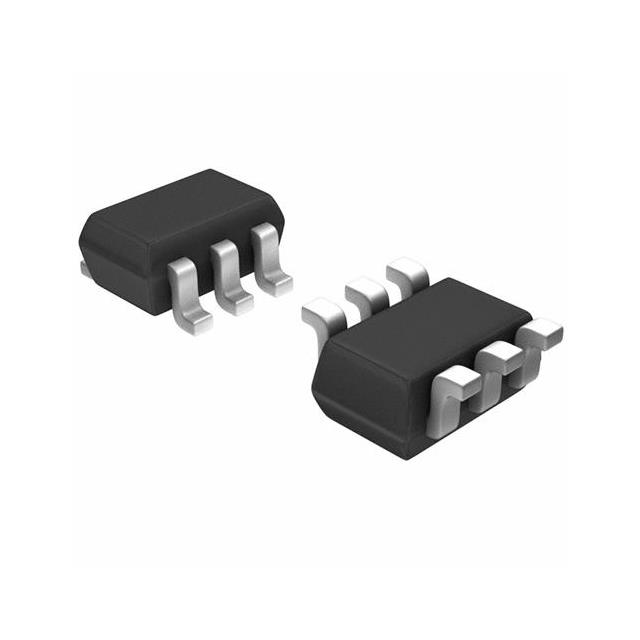

Partner Stock	AM1960NE ANALOG POWER INC.	Mosfet Array	Analog Power Inc.	*
Partner Stock	AM3531C ANALOG POWER INC.	Mosfet Array 30V 3.7A (Ta), 2.7A (Ta) 1.15W (Ta) Surface Mount 6-TSOP	Analog Power Inc.	-	30V	3.7A (Ta), 2.7A (Ta)	641pF @ 15V, 630pF @ 15V	1.15W (Ta)	58mOhm @ 2A, 4.5V, 112mOhm @ 2A, 4.5V	500mV @ 250µA	8.7nC @ 4.5V, 9.3nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	6-TSOP
Partner Stock	AM3816N ANALOG POWER INC.	Mosfet Array 20V 5.3A (Ta) 1.25W (Ta) Surface Mount 6-TSOP	Analog Power Inc.	-	20V	5.3A (Ta)	727pF @ 15V	1.25W (Ta)	30mOhm @ 5.3A, 4.5V	400mV @ 250µA	12nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	6-TSOP
Partner Stock	AM3930N ANALOG POWER INC.	Mosfet Array	Analog Power Inc.	*
Partner Stock	AM3932N ANALOG POWER INC.	Mosfet Array 3.5A (Ta) Surface Mount 6-TSOP	Analog Power Inc.	-		3.5A (Ta)			63mOhm @ 2A, 4.5V	400mV @ 250µA		MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	6-TSOP

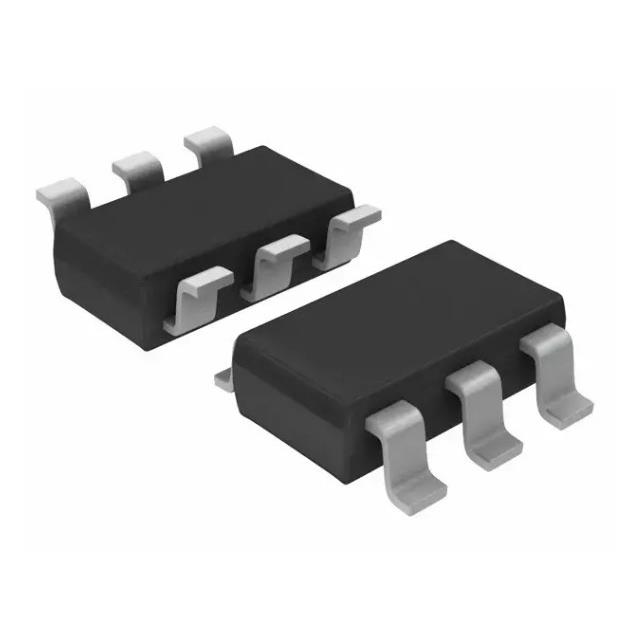

Partner Stock	AM3993P ANALOG POWER INC.	Mosfet Array	Analog Power Inc.	*
Partner Stock	AM4502C ANALOG POWER INC.	Mosfet Array 30V 9.4A (Ta), 7.9A (Ta) 2.1W (Ta) Surface Mount 8-SO	Analog Power Inc.	-	30V	9.4A (Ta), 7.9A (Ta)	1456pF @ 15V, 1934pF @ 15V	2.1W (Ta)	23mOhm @ 8.5A, 10V	1V @ 250µA	15nC @ 10V, 28nC @ 10V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AM4502CE ANALOG POWER INC.	Mosfet Array 30V 9.4A (Ta), 7.9A (Ta) 2.1W (Ta) Surface Mount 8-SO	Analog Power Inc.	-	30V	9.4A (Ta), 7.9A (Ta)	1309pF @ 15V, 1663pF @ 15V	2.1W (Ta)	16mOhm @ 4.7A, 10V, 23mOhm @ 3.9A, 10V	1V @ 250µA	11nC @ 4.5V, 23nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AM4512C ANALOG POWER INC.	Mosfet Array 30V 6.7A (Ta), 5.2A (Ta) 2.1W (Ta) Surface Mount 8-SO	Analog Power Inc.	-	30V	6.7A (Ta), 5.2A (Ta)	519pF @ 15V, 604pF @ 15V	2.1W (Ta)	31mOhm @ 4.7A, 10V, 52mOhm @ 4.2A, 10V	1V @ 250µA	6nC @ 4.5V, 7nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AM4536C ANALOG POWER INC.	Mosfet Array 30V 7.1A (Ta), 6A (Ta) 2.1W (Ta) Surface Mount 8-SO	Analog Power Inc.	-	30V	7.1A (Ta), 6A (Ta)	519pF @ 15V, 597pF @ 15V	2.1W (Ta)	28mOhm @ 5.7A, 10V, 39mOhm @ 4.8A, 10V	1V @ 250µA	5.8nC @ 4.5V, 19nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AM4541C ANALOG POWER INC.	Mosfet Array 40V 5.8A (Ta), 3.9A (Ta) 2.1W (Ta) Surface Mount 8-SO	Analog Power Inc.	-	40V	5.8A (Ta), 3.9A (Ta)	287pF @ 15V, 384pF @ 15V	2.1W (Ta)	42mOhm @ 5.3A, 10V, 90mOhm @ 3.6A, 10V	1V @ 250µA	3.6nC @ 10V, 5.8nC @ 10V	MOSFET (Metal Oxide)		-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AM4599C ANALOG POWER INC.	Mosfet Array 60V 7.7A (Ta), 4.3A (Ta) 2.1W (Ta) Surface Mount 8-SO	Analog Power Inc.	-	60V	7.7A (Ta), 4.3A (Ta)	1465pF @ 15V, 1817pF @ 15V	2.1W (Ta)	33mOhm @ 5.4A, 10V, 57mOhm @ 5.2A, 10V	1V @ 250µA	5nC @ 4.5V, 20nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AM4890N ANALOG POWER INC.	Mosfet Array 1.4A (Ta) Surface Mount 8-SO	Analog Power Inc.	-		1.4A (Ta)			700mOhm @ 1.2A, 10V	1V @ 250µA		MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AM4902N ANALOG POWER INC.	Mosfet Array 60V 6.4A (Ta) 2.1W (Ta) Surface Mount 8-SO	Analog Power Inc.	-	60V	6.4A (Ta)	1460pF @ 15V	2.1W (Ta)	35mOhm @ 5.2A, 10V	1V @ 250µA	16nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AM4910N ANALOG POWER INC.	Mosfet Array 30V 10A (Ta) 2.1W (Ta) Surface Mount 8-SO	Analog Power Inc.	-	30V	10A (Ta)	-	2.1W (Ta)	13.5mOhm @ 10A, 10V	1V @ 250µA	20nC @ 5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AM4998N ANALOG POWER INC.	Mosfet Array 30V 6.7A (Ta) 2.1W (Ta) Surface Mount 8-SO	Analog Power Inc.	-	30V	6.7A (Ta)	641pF @ 15V	2.1W (Ta)	32mOhm @ 5.3A, 4.5V	0.5V @ 250µA (Min)	9nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AM7542C ANALOG POWER INC.	Mosfet Array 40V 6.9A (Ta), 6.6A (Ta) 2.5W (Ta) Surface Mount 8-DFN (5x6)	Analog Power Inc.	-	40V	6.9A (Ta), 6.6A (Ta)	1506pF @ 15V, 1264pF @ 15V	2.5W (Ta)	39mOhm @ 6.6A, 10V	1V @ 250µA	10nC @ 4.5V, 15nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-DFN (5x6)
Partner Stock	AM7942N ANALOG POWER INC.	Mosfet Array 40V 17A (Ta), 50A (Tc) 2.5W (Ta), 63W (Tc) Surface Mount 8-DFN (5x6)	Analog Power Inc.	-	40V	17A (Ta), 50A (Tc)	3772pF @ 15V	2.5W (Ta), 63W (Tc)	6mOhm @ 50A, 10V	1V @ 250µA	32nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-DFN (5x6)
Partner Stock	AM7966N ANALOG POWER INC.	Mosfet Array 60V 6.8A (Ta), 19A (Tc) 2.5W (Ta), 19W (Tc) Surface Mount 8-DFN (5x6)	Analog Power Inc.	-	60V	6.8A (Ta), 19A (Tc)	854pF @ 15V	2.5W (Ta), 19W (Tc)	37mOhm @ 4A, 10V	1V @ 250µA	8nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-DFN (5x6)
Partner Stock	AM9926N ANALOG POWER INC.	Mosfet Array 20V 6.9A (Ta) 2.1W (Ta) Surface Mount 8-SO	Analog Power Inc.	-	20V	6.9A (Ta)	439pF @ 15V	2.1W (Ta)	30mOhm @ 4.8A, 4.5V	1V @ 250µA	7nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount	8-SO
Partner Stock	AMD560C-CT ANALOG POWER INC.	Mosfet Array 60V 35A (Tc), 20A (Tc) 50W (Tc) Surface Mount TO-252-4	Analog Power Inc.	*	60V	35A (Tc), 20A (Tc)	1422pF @ 15V, 1143pF @ 15V	50W (Tc)	24mOhm @ 20A, 10V, 85mOhm @ 10A, 10V	1V @ 250µA	9nC @ 4.5V, 10nC @ 4.5V	MOSFET (Metal Oxide)		-55°C ~ 175°C (TJ)			Surface Mount	TO-252-4
Partner Stock	AMR980N ANALOG POWER INC.	Mosfet Array 60V 8.2A (Ta), 26.5A (Tc), 11.6A (Ta), 52.3A (Tc) 2W (Ta), 21W (Tc), 2W (Ta), 41W (Tc) Surface Mount, Wettable Flank 8-DFN (5x6)	Analog Power Inc.	-	60V	8.2A (Ta), 26.5A (Tc), 11.6A (Ta), 52.3A (Tc)	450pF @ 40V, 900pF @ 40V	2W (Ta), 21W (Tc), 2W (Ta), 41W (Tc)	20mOhm @ 8A, 10V, 10mOhm @ 10A, 10V	1V @ 250µA	9nC @ 4.5V, 18nC @ 4.5V	MOSFET (Metal Oxide)	-	-55°C ~ 150°C (TJ)			Surface Mount, Wettable Flank	8-DFN (5x6)
