Top >
Passive components > Switches/Controllers >
Dip switch type

套用的篩選條件：

點擊數30～ / 型號名稱： / 狀態：全部 / 數量：0PCS~

Page　1 of 1

搜尋結果(Excel)

庫存所在位置	型號 / 製造商 / 其他	資訊核友管理編號	Manufacturer	Series	Actuator Type	Voltage Rating	Rated Current (A)	Circuit	Actuator Level	Pitch	Number of Positions	Washable	Termination Style	Operating Temperature Range	Features	Mounting Type	Height Above Board	Contact Finish	Contact Material

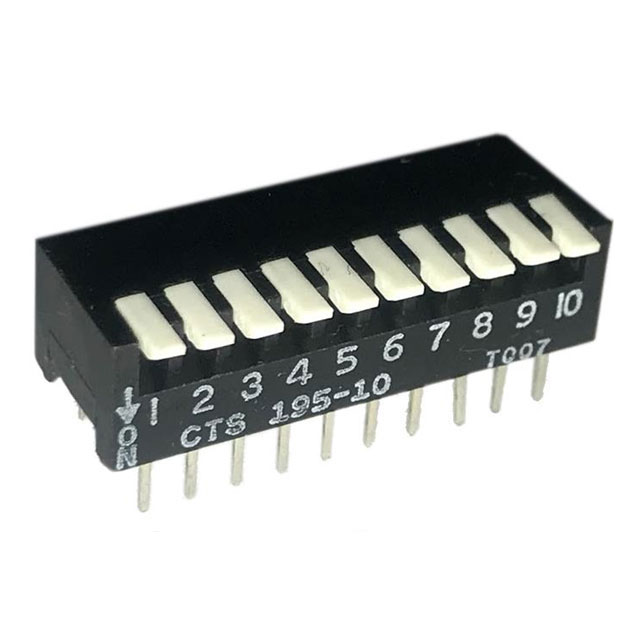

Partner Stock	195-10MS CTS ELECTROCOMPONENTS	Dip Switch SPST 10 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	10	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-10MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 10 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	10	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-10MST CTS ELECTROCOMPONENTS	Dip Switch SPST 10 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	10	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-12MS CTS ELECTROCOMPONENTS	Dip Switch SPST 12 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	12	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-12MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 12 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	12	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-12MST CTS ELECTROCOMPONENTS	Dip Switch SPST 12 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	12	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-2MS CTS ELECTROCOMPONENTS	Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	2	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-2MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	2	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-2MST CTS ELECTROCOMPONENTS	Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	2	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-3MS CTS ELECTROCOMPONENTS	Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	3	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-

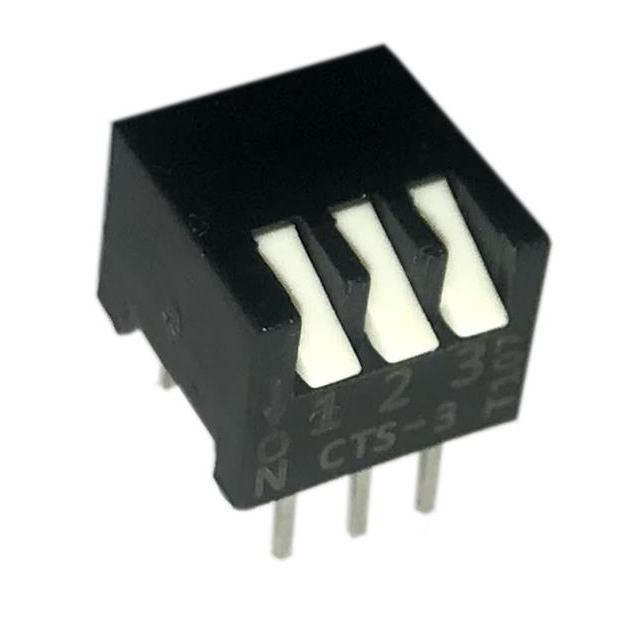

Partner Stock	195-3MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	3	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-3MST CTS ELECTROCOMPONENTS	Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	3	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-4MS CTS ELECTROCOMPONENTS	Dip Switch SPST 4 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	4	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-4MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 4 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	4	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-4MST CTS ELECTROCOMPONENTS	Dip Switch SPST 4 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	4	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-5MS CTS ELECTROCOMPONENTS	Dip Switch SPST 5 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	5	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-5MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 5 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	5	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-5MST CTS ELECTROCOMPONENTS	Dip Switch SPST 5 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	5	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-6MS CTS ELECTROCOMPONENTS	Dip Switch SPST 6 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	6	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-6MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 6 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	6	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-6MST CTS ELECTROCOMPONENTS	Dip Switch SPST 6 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	6	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-7MS CTS ELECTROCOMPONENTS	Dip Switch SPST 7 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	7	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-7MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 7 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	7	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-7MST CTS ELECTROCOMPONENTS	Dip Switch SPST 7 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	7	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-8MS CTS ELECTROCOMPONENTS	Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	8	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-8MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	8	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-8MST CTS ELECTROCOMPONENTS	Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	8	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-9MS CTS ELECTROCOMPONENTS	Dip Switch SPST 9 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	9	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-

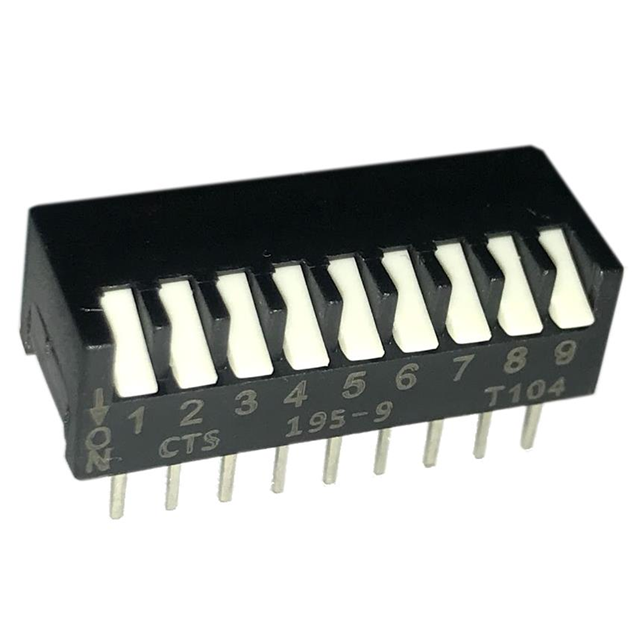

Partner Stock	195-9MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 9 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	9	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
Partner Stock	195-9MST CTS ELECTROCOMPONENTS	Dip Switch SPST 9 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	195	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	9	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Tin	-
