Top >
Passive components > Switches/Controllers >
Dip switch type

套用的篩選條件：

點擊數30～ / 型號名稱： / 狀態：全部 / 數量：0PCS~

Page　1 of 1

搜尋結果(Excel)

庫存所在位置	型號 / 製造商 / 其他	資訊核友管理編號	Manufacturer	Series	Actuator Type	Voltage Rating	Rated Current (A)	Circuit	Actuator Level	Pitch	Number of Positions	Washable	Termination Style	Operating Temperature Range	Features	Mounting Type	Height Above Board	Contact Finish	Contact Material
Partner Stock	194-10MS CTS ELECTROCOMPONENTS	Dip Switch SPST 10 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	10	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-10MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 10 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	10	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-10MST CTS ELECTROCOMPONENTS	Dip Switch SPST 10 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	10	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-12MS CTS ELECTROCOMPONENTS	Dip Switch SPST 12 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	12	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-12MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 12 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	12	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-12MST CTS ELECTROCOMPONENTS	Dip Switch SPST 12 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	12	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-2MS CTS ELECTROCOMPONENTS	Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	2	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-2MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	2	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-2MST CTS ELECTROCOMPONENTS	Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	2	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-3MS CTS ELECTROCOMPONENTS	Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	3	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-3MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	3	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-3MST CTS ELECTROCOMPONENTS	Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	3	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-4MS CTS ELECTROCOMPONENTS	Dip Switch SPST 4 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	4	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-4MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 4 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	4	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-4MST CTS ELECTROCOMPONENTS	Dip Switch SPST 4 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	4	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-

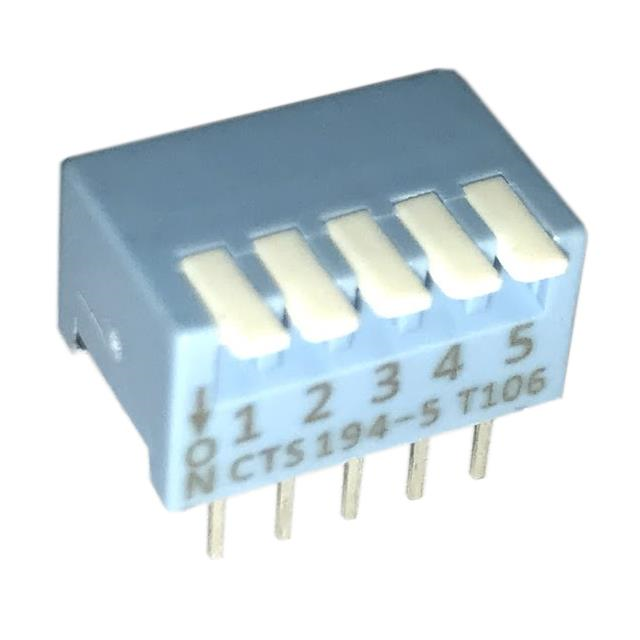

Partner Stock	194-5MS CTS ELECTROCOMPONENTS	Dip Switch SPST 5 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	5	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-

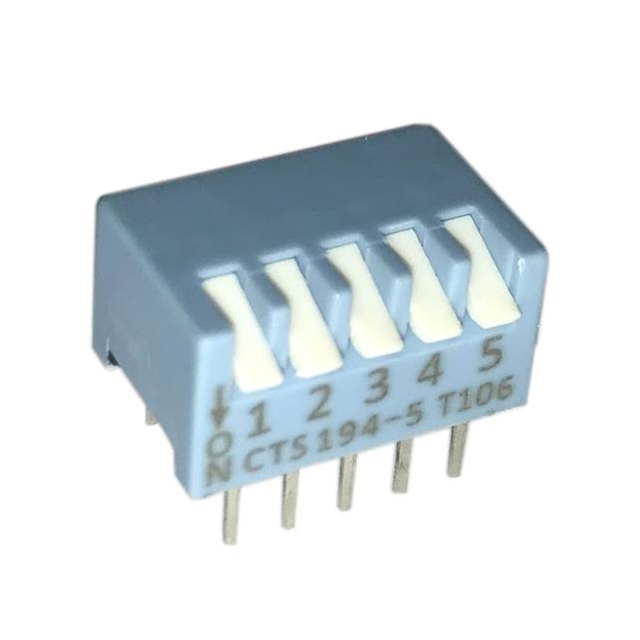

Partner Stock	194-5MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 5 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	5	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-5MST CTS ELECTROCOMPONENTS	Dip Switch SPST 5 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	5	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-6MS CTS ELECTROCOMPONENTS	Dip Switch SPST 6 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	6	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-

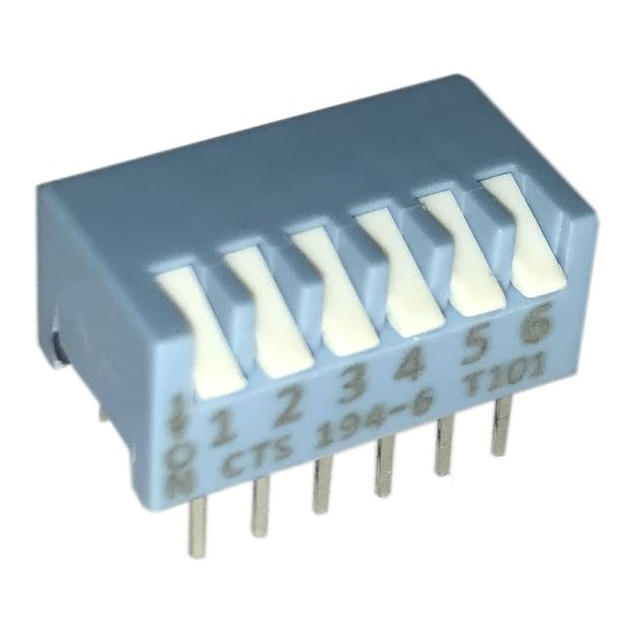

Partner Stock	194-6MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 6 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	6	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-6MST CTS ELECTROCOMPONENTS	Dip Switch SPST 6 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	6	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-7MS CTS ELECTROCOMPONENTS	Dip Switch SPST 7 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	7	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-7MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 7 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	7	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-7MST CTS ELECTROCOMPONENTS	Dip Switch SPST 7 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	7	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-8MS CTS ELECTROCOMPONENTS	Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	8	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-8MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	8	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-8MST CTS ELECTROCOMPONENTS	Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	8	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-9MS CTS ELECTROCOMPONENTS	Dip Switch SPST 9 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	9	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-9MSN CTS ELECTROCOMPONENTS	Dip Switch SPST 9 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	9	No	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
Partner Stock	194-9MST CTS ELECTROCOMPONENTS	Dip Switch SPST 9 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC	CTS Electrocomponents	194	Piano	24VDC	50mA	SPST	Raised	0.100" (2.54mm), Full	9	Yes	PC Pin	-40°C ~ 85°C	Epoxy Sealed Terminals, Tape Seal	Through Hole, Right Angle	0.311" (7.90mm)	Gold	-
